Primary Members

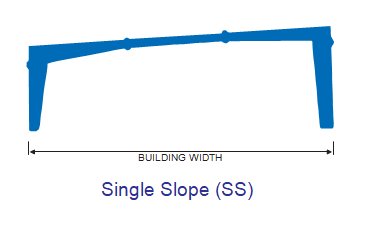

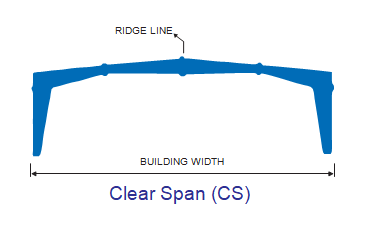

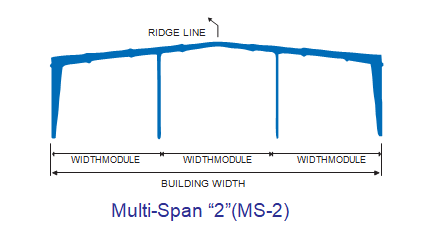

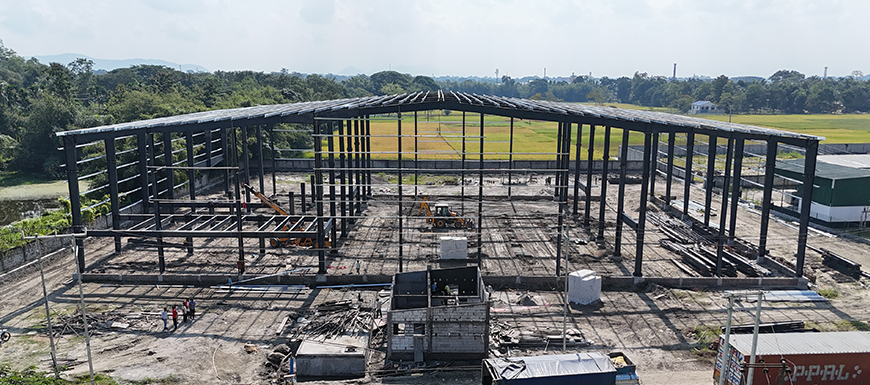

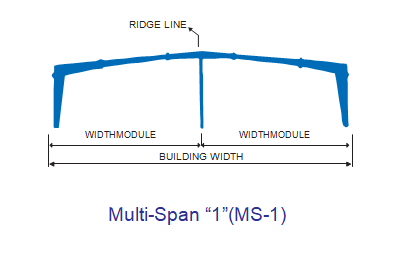

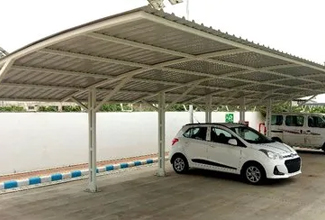

Invogue Buildings are optimized to meet specific requirements of each client. The most common primary framing systems are shown below. All frames shown are symmetrical about the ridge line.

Framing systems asymmetrical about the ridge line and Multi-Span systems with unequal width modules are possible, but require special study. Practically any frame geometry is possible. Primary Framing consists of all structural elements that transfer load to the foundation and comprises:

Intermediate Frames

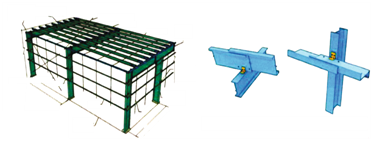

Intermediate frames consist of built-up welded members. Frames are complimented by flange bracings, connection bolts & anchor bolts. Column bases are usually pinned. Fixed connection, if required as per design, can also be provided.

Endwall Frames

End wall frames consist of built-up welded members. Frames are complimented by connection bolts, anchor bolts & wind bracings, if required.

Crane Beams & Crane Brackets

Mezzanine Beams & Joists

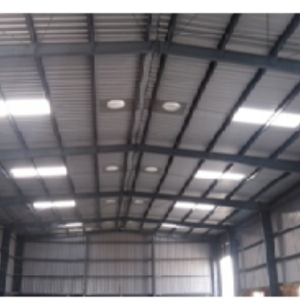

Secondry Members

Secondary members consists of elements which support the roof and wall sheeting and transfer load to the primary framing. These include Roof Purlins, Wall Girts and Eave Struts.

Roof Purlins:
Roof Purlins are cold-formed Z-profiles, normally 200 to 250 mm deep, made out of 1.6 mm to 3 mm thick steel. These are fixed to the top flange of the rafters by means of clips bolted to the rafters, and the purlin webs are bolted to the clips. Purlin ends are overlapped to act as continuous beams.

Wall Girts:
Wall Girts are cold-formed Z-sections, normally 200 to 250 mm deep, made out of 1.6 mm to 3 mm thick steel. These are fixed to the outer flange of the sidewall columns by means of clips bolted to the column, and the girt webs are bolted to the clips. Girt ends are overlapped to act as continuous beams.

Eave struts:
Eave Struts are C-profiles, normally 200 to 250 mm deep, made out of 2 mm to 3 mm thick steel. These are fixed to the outer flange of the sidewall columns by means of clips bolted to the column, and the eave strut bottom flange is bolted to the clips.

Cranes & Mezzanines

Invogue’s PEB can be designed to accept most types of crane systems such as EOT, Monorail, Under-hung cranes and other load carrying devices like conveyors etc., in both clear span and multi span buildings. When a crane system is to be integrated, Invogue’s scope is limited to brackets and crane runway beams which support the crane system. Complete information on the crane systems is required in order to design and estimate buildings with cranes.

Mezzanines in Buildings

Intermediate mezzanine floors are possible in metal buildings. Mezzanine can be provided in complete or partial area in PEB to suit loading requirement for office or storage. Mezzanine floors consist of chequered plate or galvanized decking sheet, supported by joists connected to main mezzanine beams. Main beams normally run across the width of the building and are located under main rafters, while joists run parallel to the length of the building.

Cranes in Building

Mezzanine in Building

Metal Roof & Wall Cladding

Hi-Rib Roofing and Cladding systems are metal sheets with corrugation, corrugation gives high strength to the sheets. Our sheets are light weight which gives 1000 mm wide coverage with 30 mm rib depth at 200-250 mm c/c with two/three stiffener ribs which makes it the strongest profile in its category.

Hi-Rib Profile sheet

Klippon Sheet

Standing Seam

Insulated Panels

Deck Sheet For Mezzanine

Accessories

Skylights & wall Lights

Trims (Flashings)

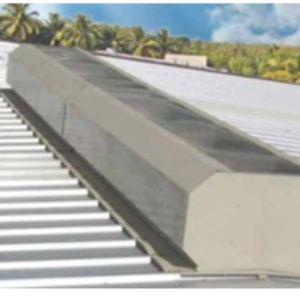

Roof Monitor

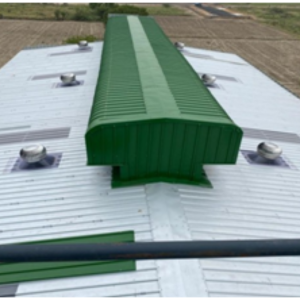

Ridge vents

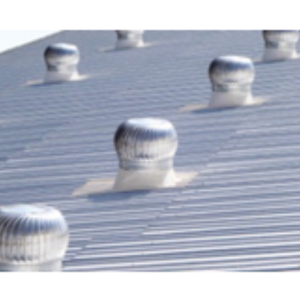

Turbo-vents

Insulation

Louvers

Fasteners
